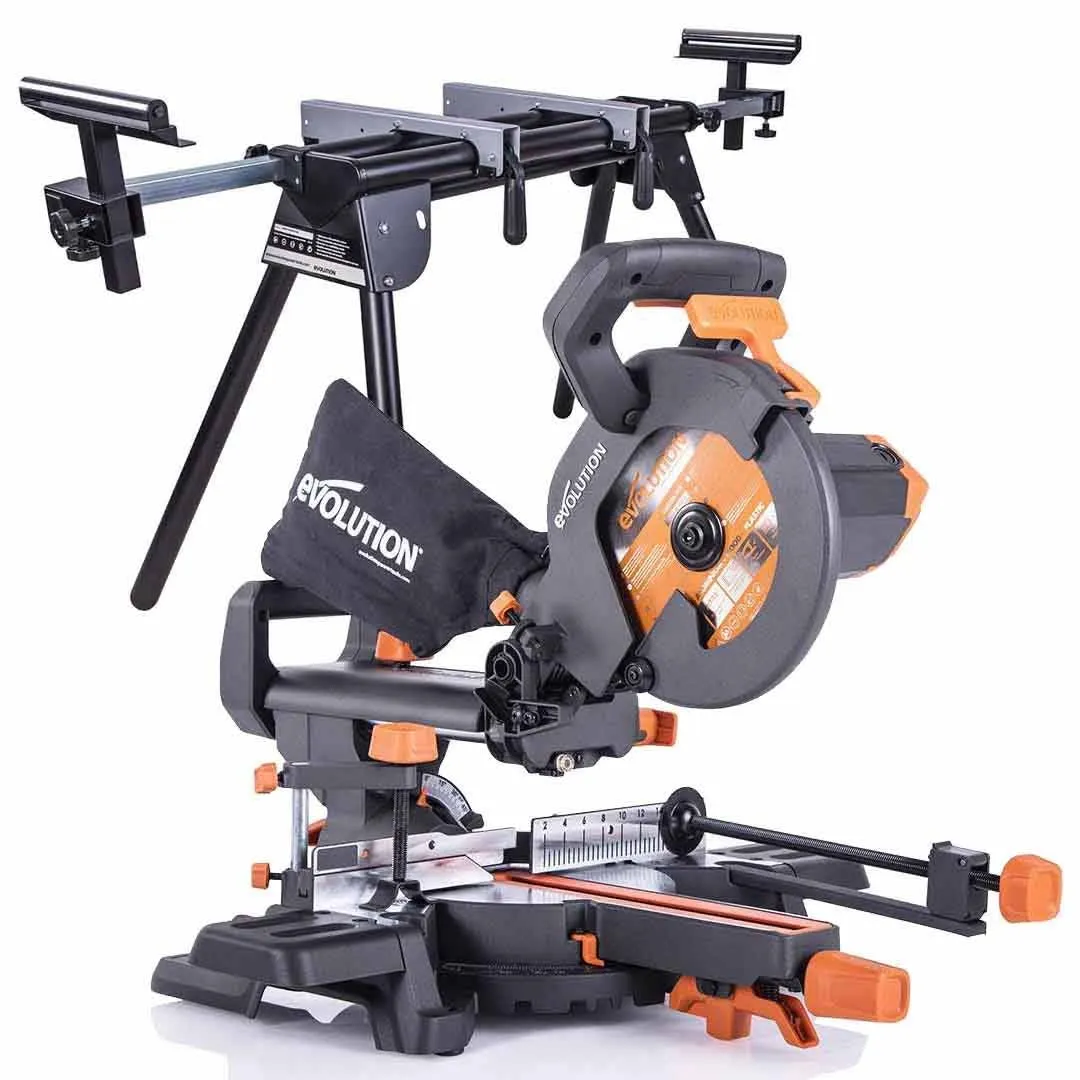

Save when you buy the R210SMS Mitre Saw and Mitre Saw Stand together.

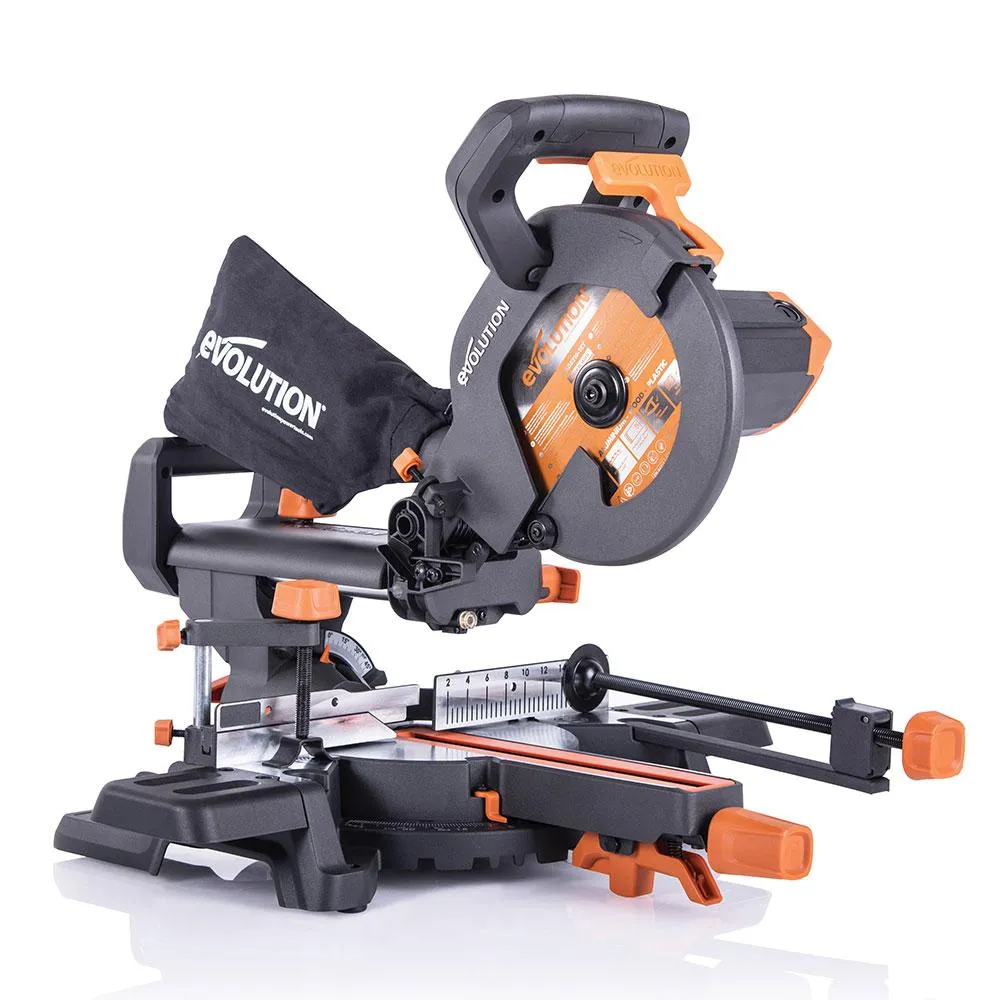

Go premium and equip yourself with the best 210mm sliding compound mitre saw on the market. Multi-material cutting technology with all the features you'll need to get the job done. Delivering accuracy, reliability and the power to handle heavy-duty materials - the R210SMS is truly superb value for money.
Mitre Saw Features

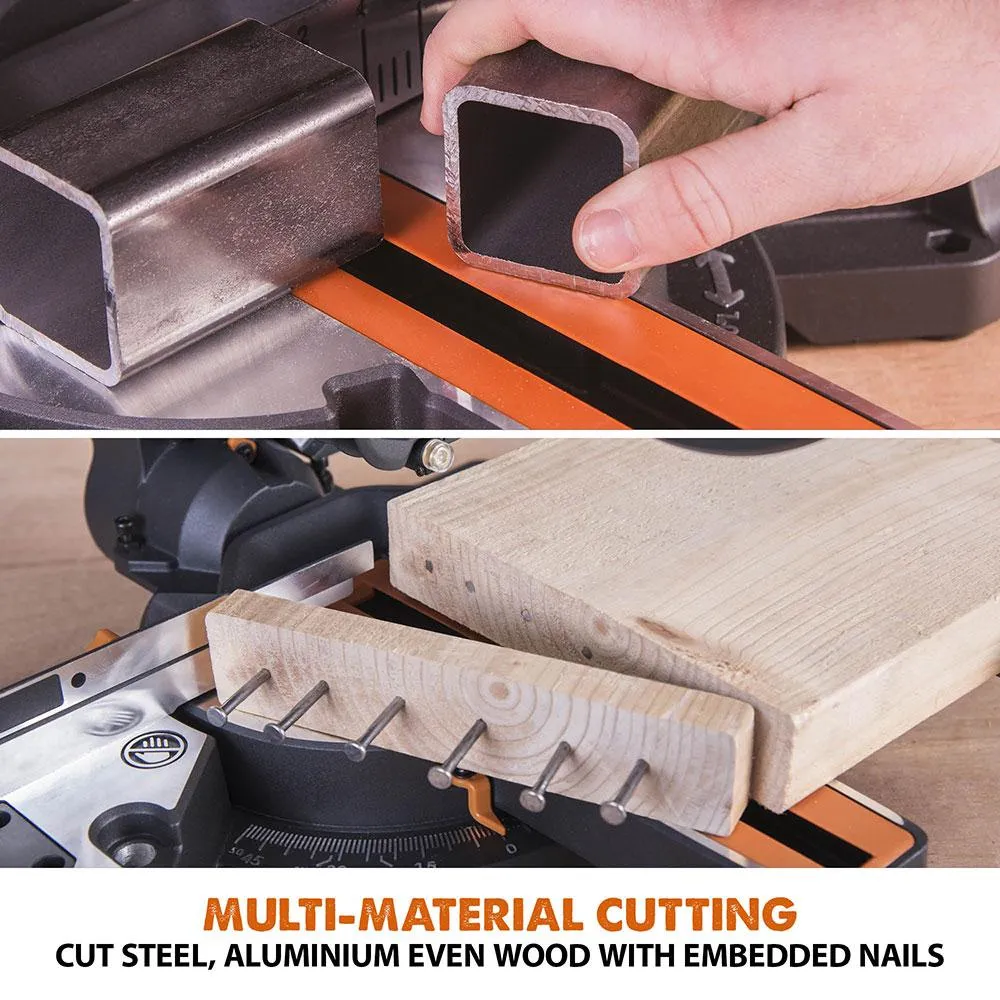

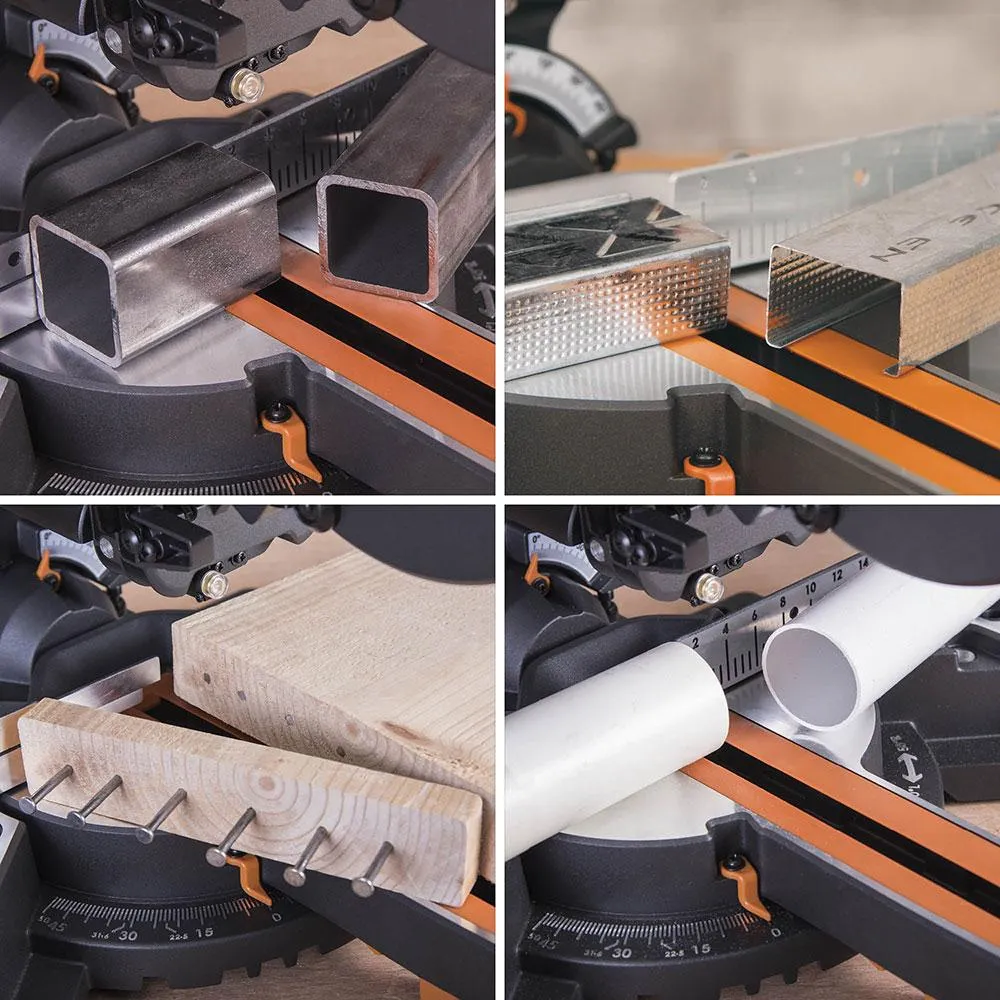

- Multi-Material cutting technology. One saw, one blade, cuts all.*

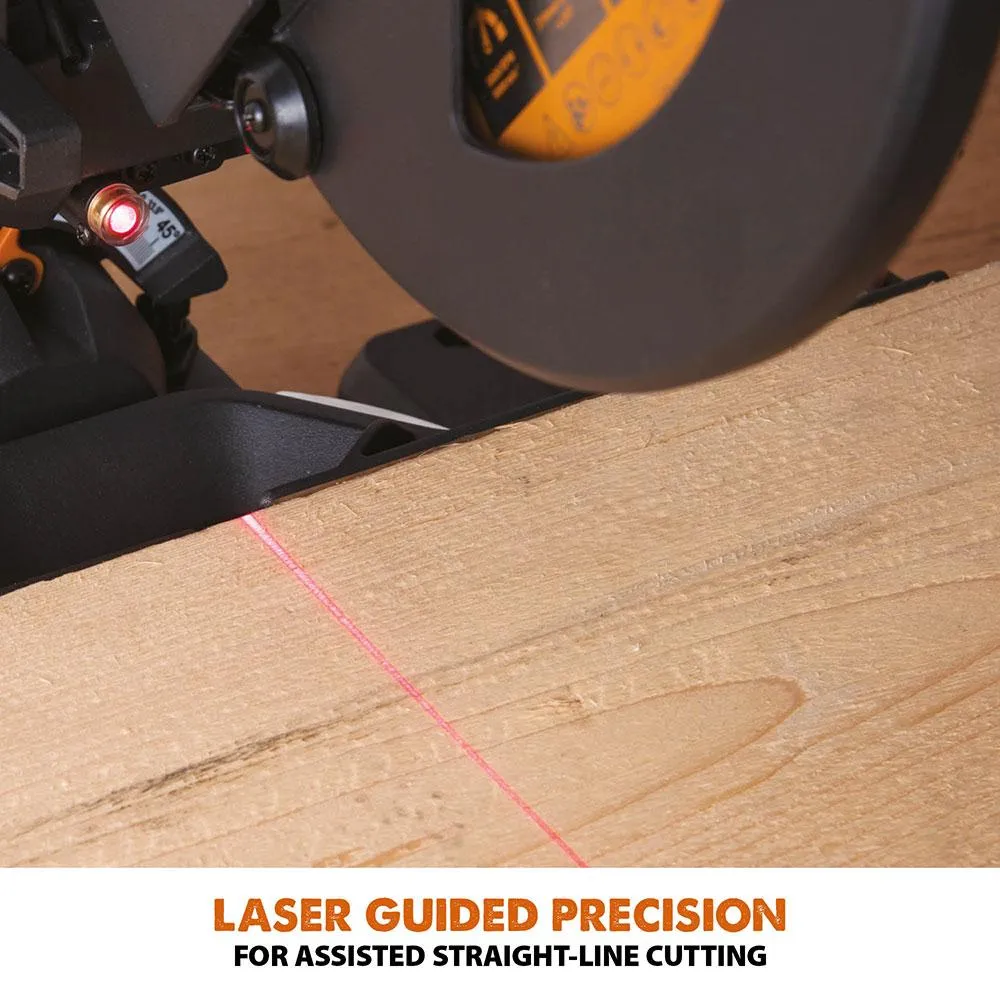

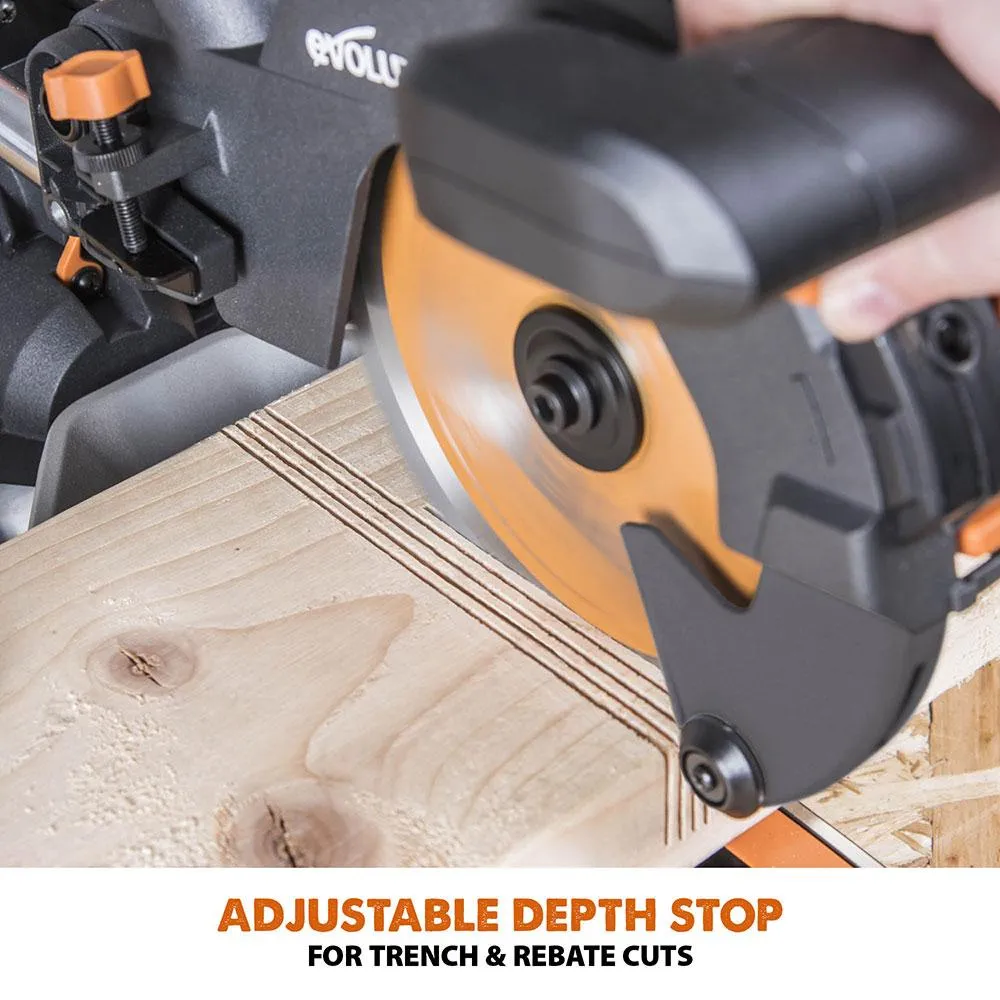

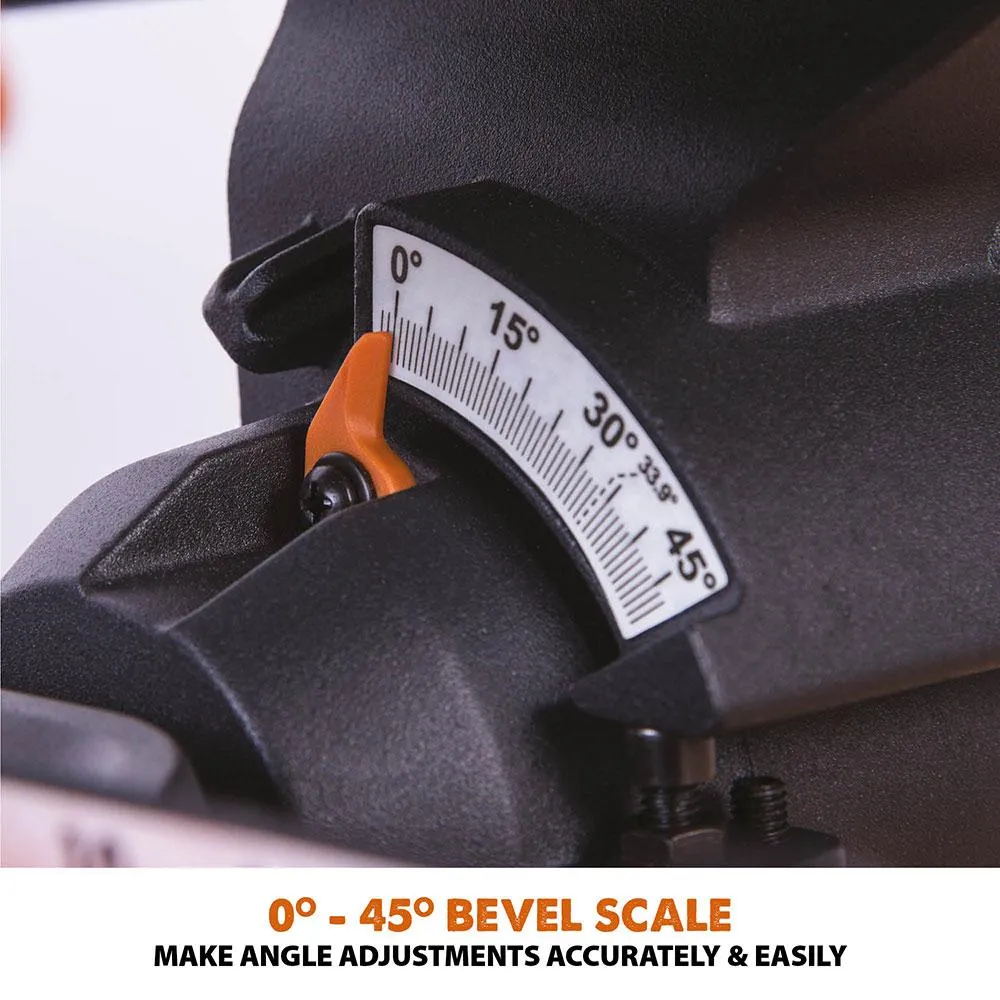

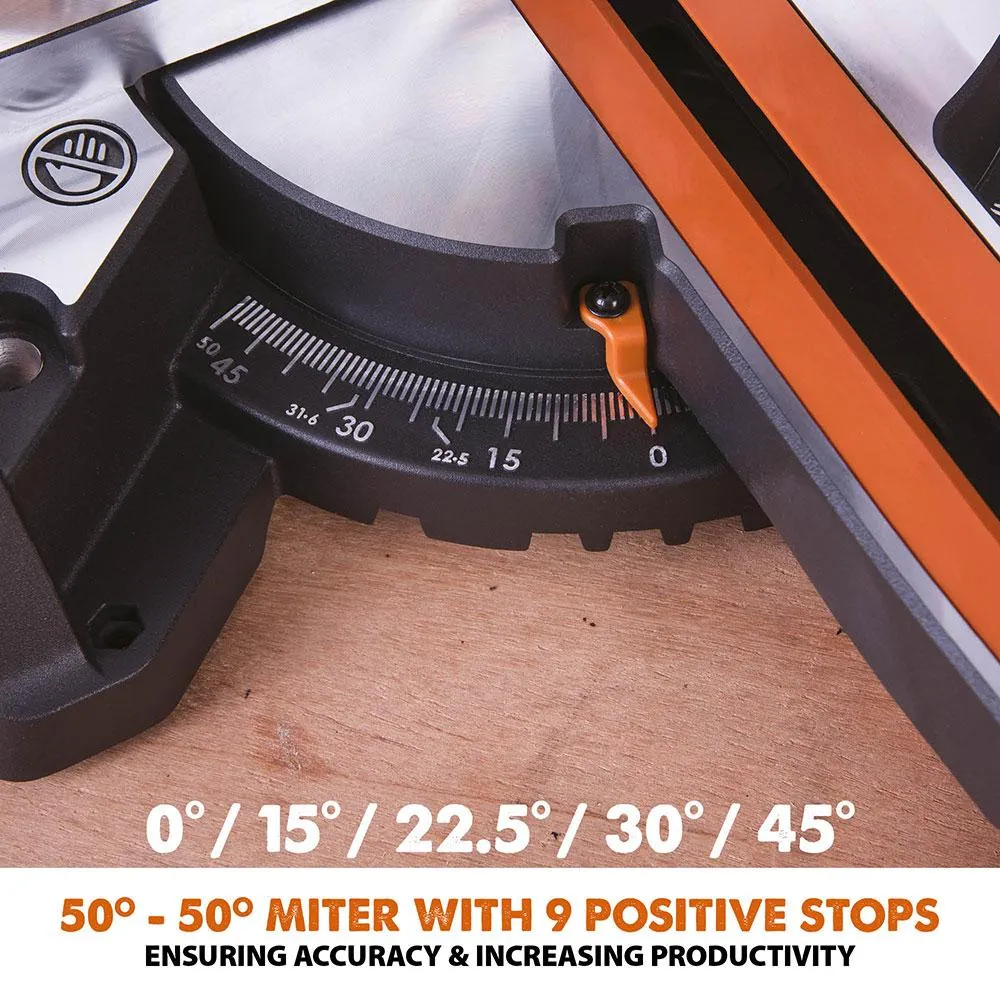

- Precision cutting with laser guidance, trench cut facility, 230mm slide, 0˚ - 45˚ bevel and 50° - 50° mitre settings.

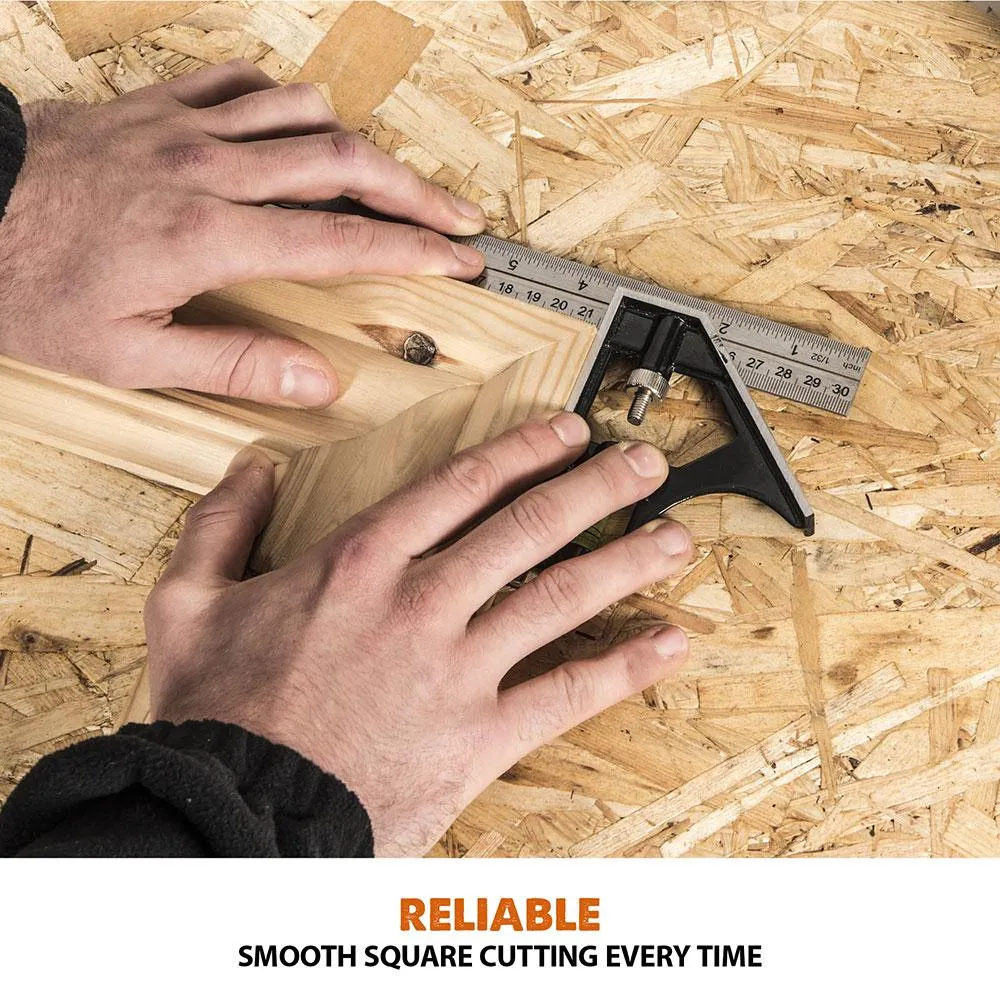

- Reliability at the forefront of Evolution saws ensures smooth, square cutting every time in a variety of materials.

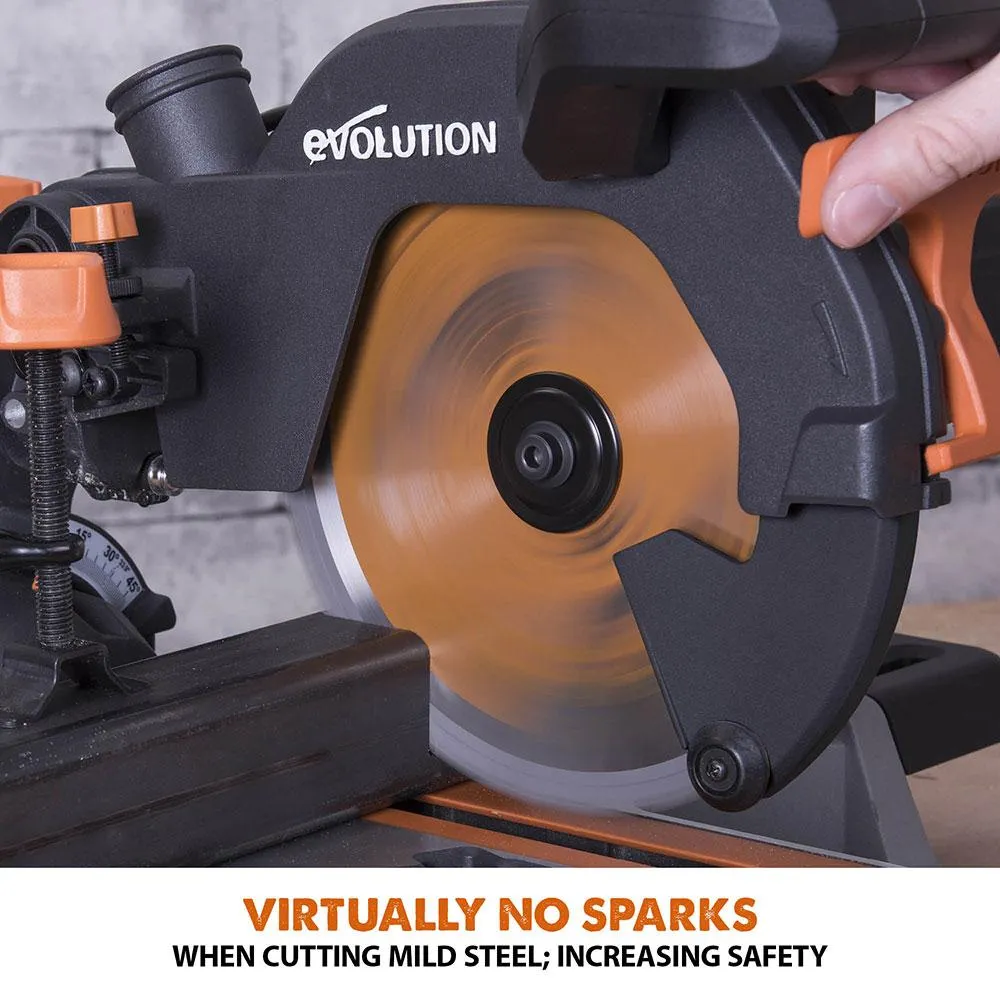

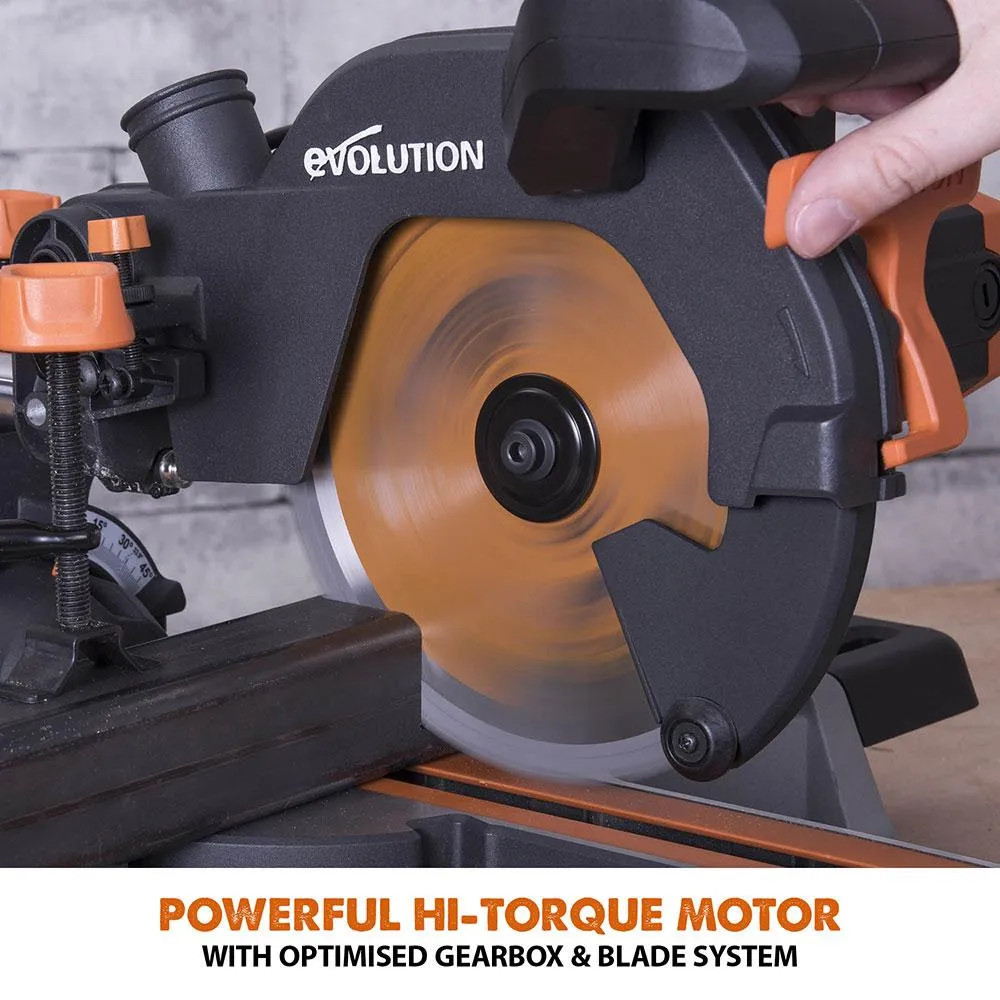

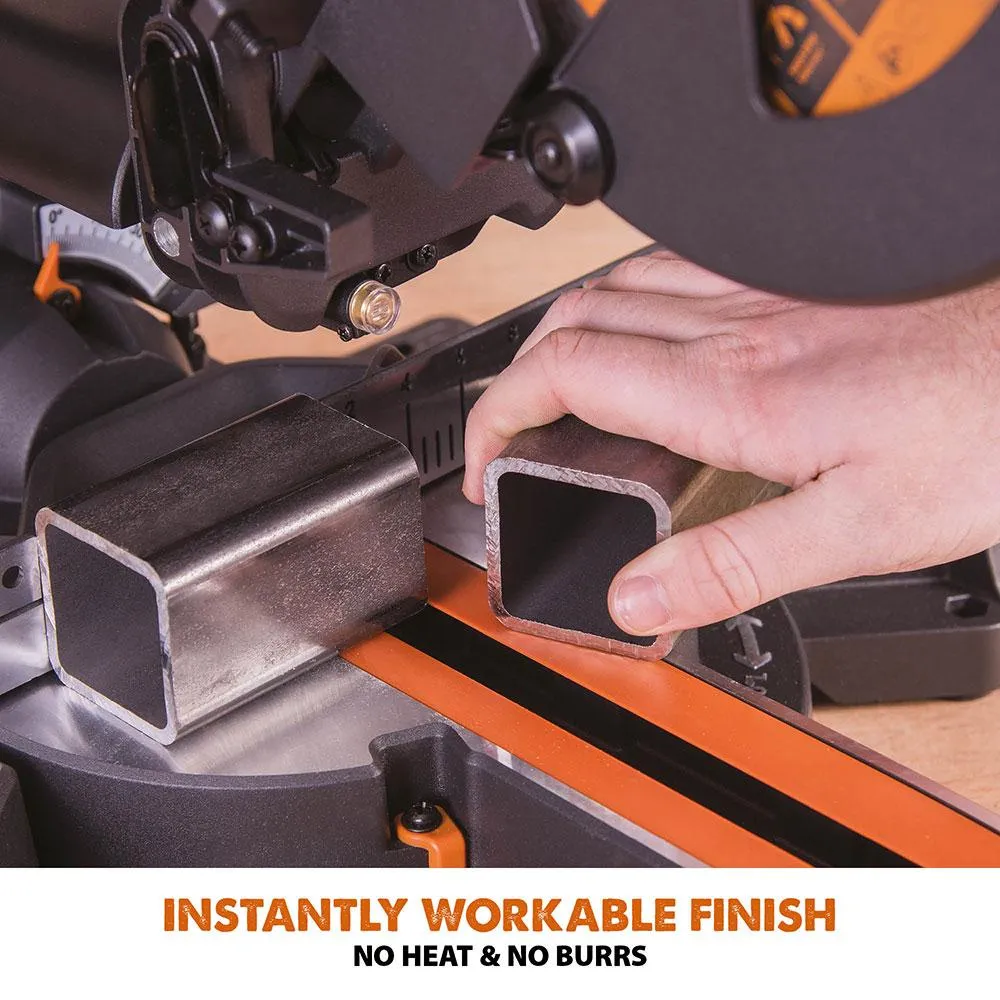

- 1500W of hi-torque power & optimised gearbox to cut mild steel, wood with embedded nails and more.
- Perform accurate Cross cuts, Mitre cuts, Bevel cuts and Compound cuts with adjustable precision settings.

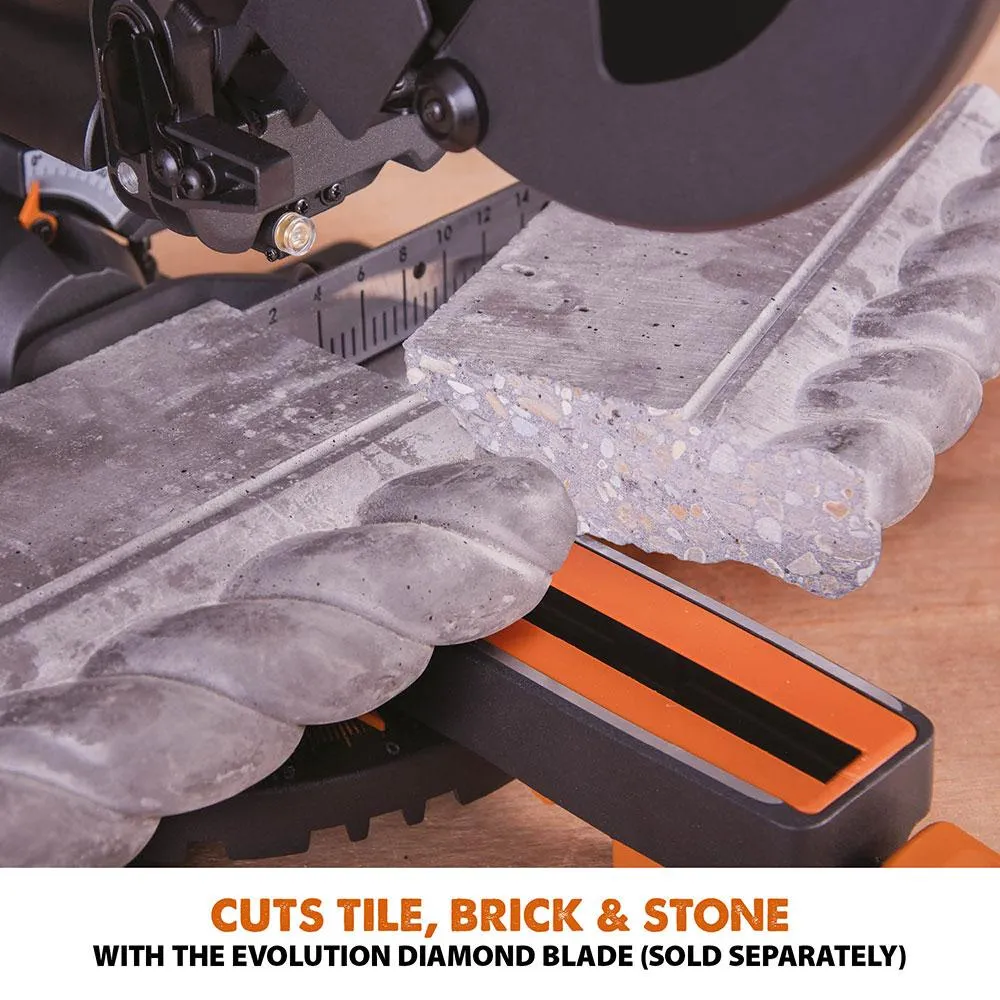

- Compatible with the Evolution Mitre Saw Stand and 210mm continuous rim diamond blade for cutting tiles, brick & ornamental stone, (sold separately).
- 3 Year limited warranty.

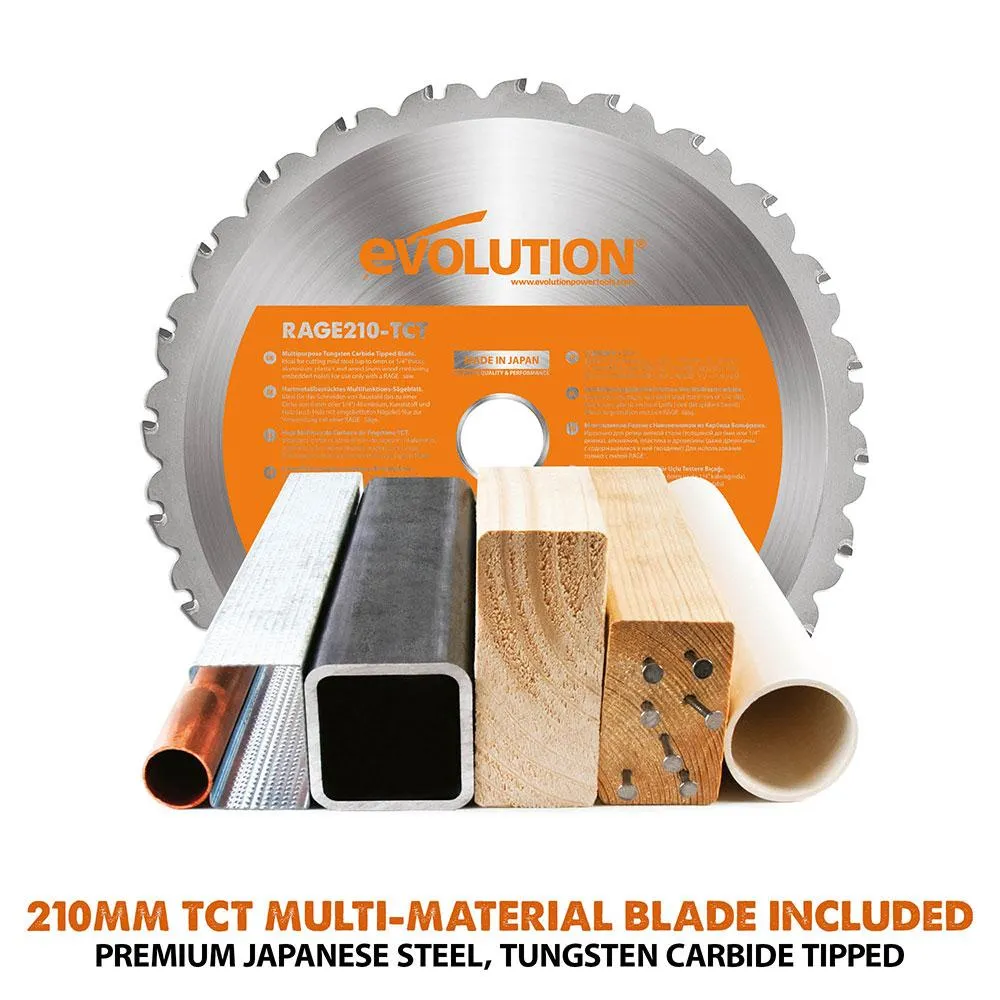

- Premium Japanese Tungsten-Carbide-Tipped (TCT) 210mm blade included.
- Dual Quick-Release clamps included for additional accuracy & faster adjustments.

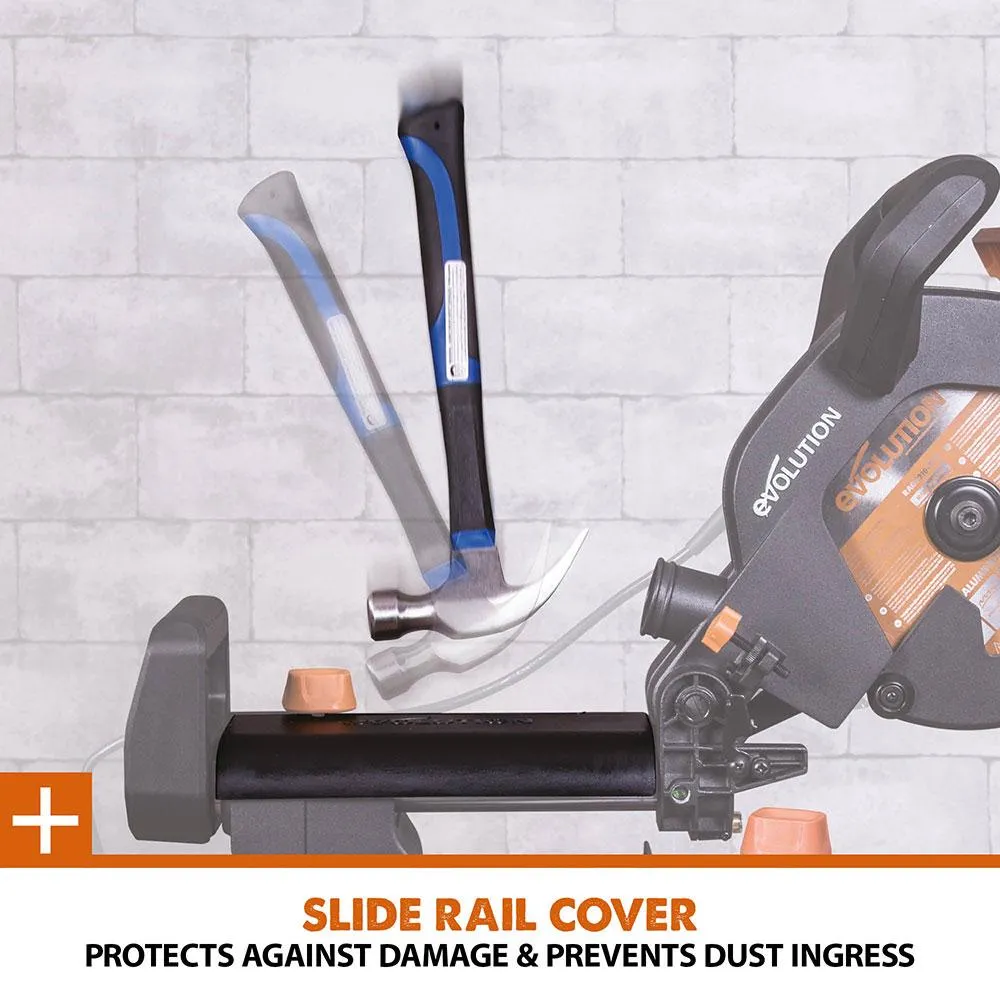

- Slide rail protector included protects against damage & prevents dust ingress.

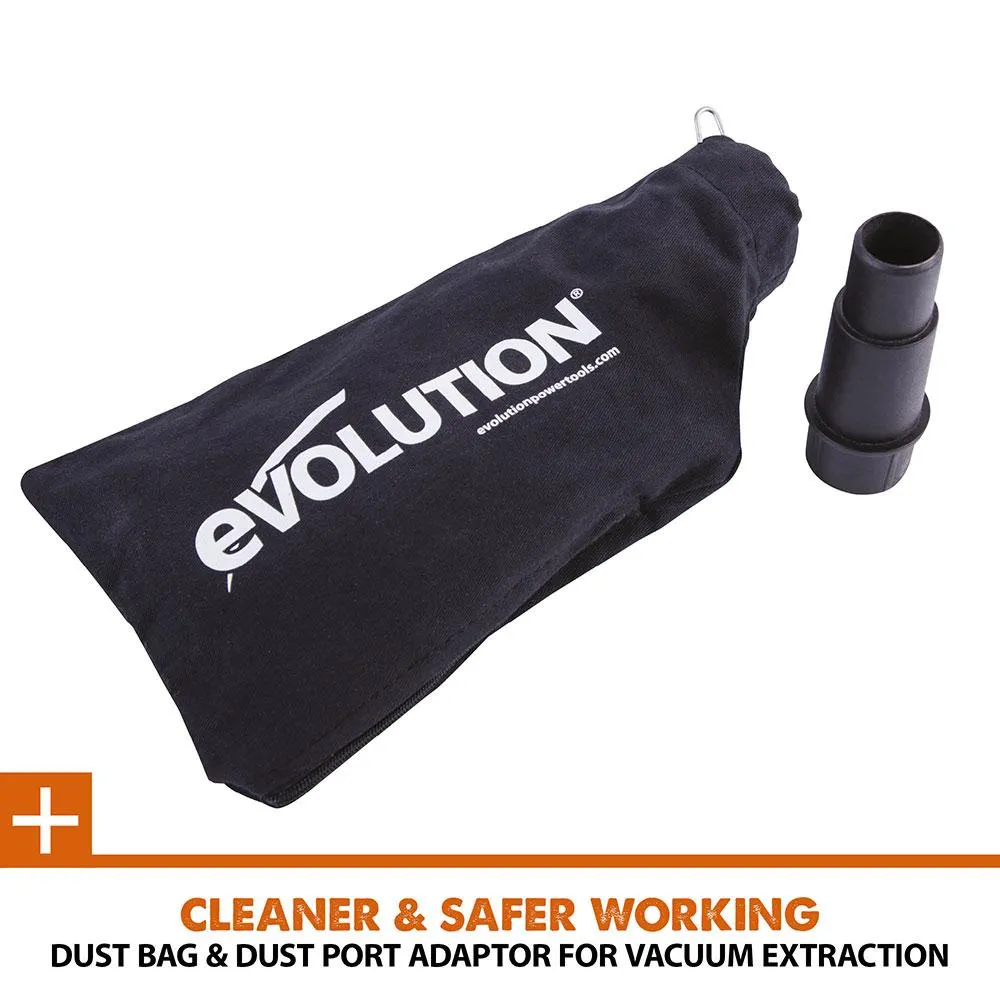

- Cleaner & safer working environment with dust collection bag & dust port adaptor for use with vacuum extraction.

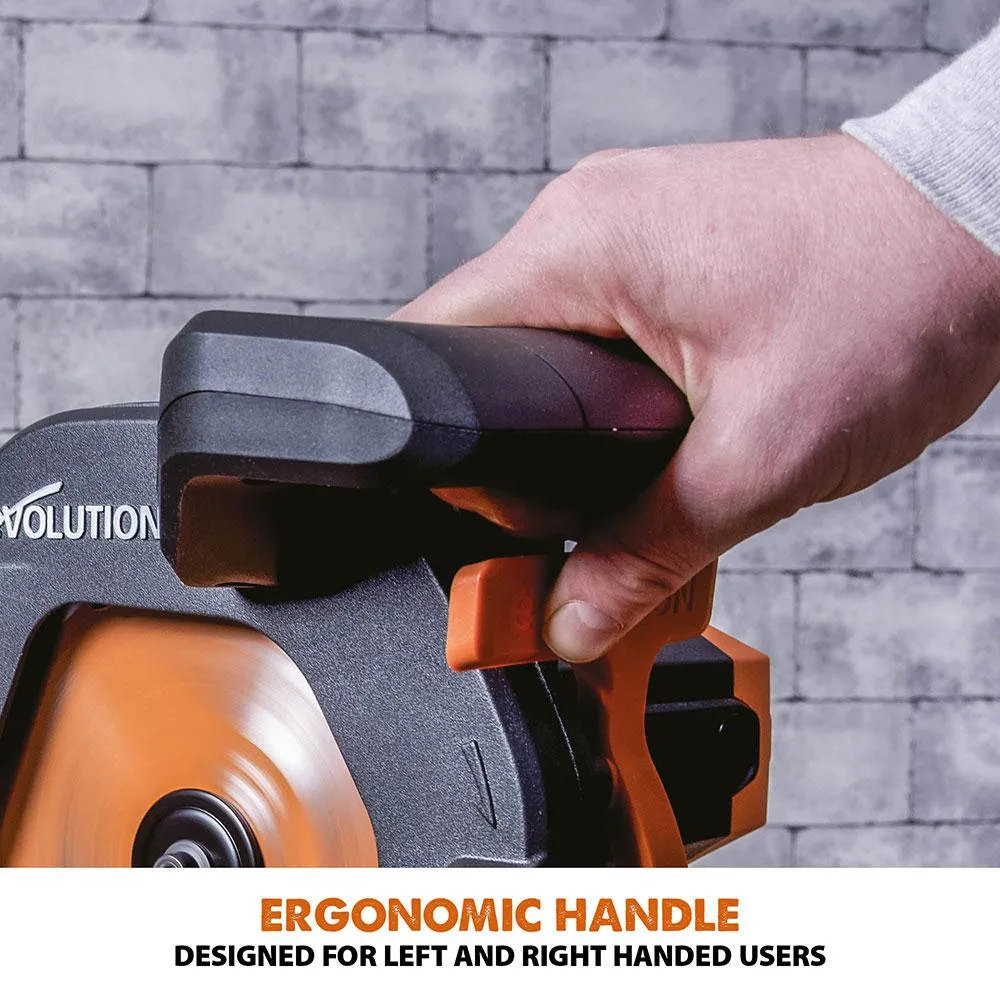

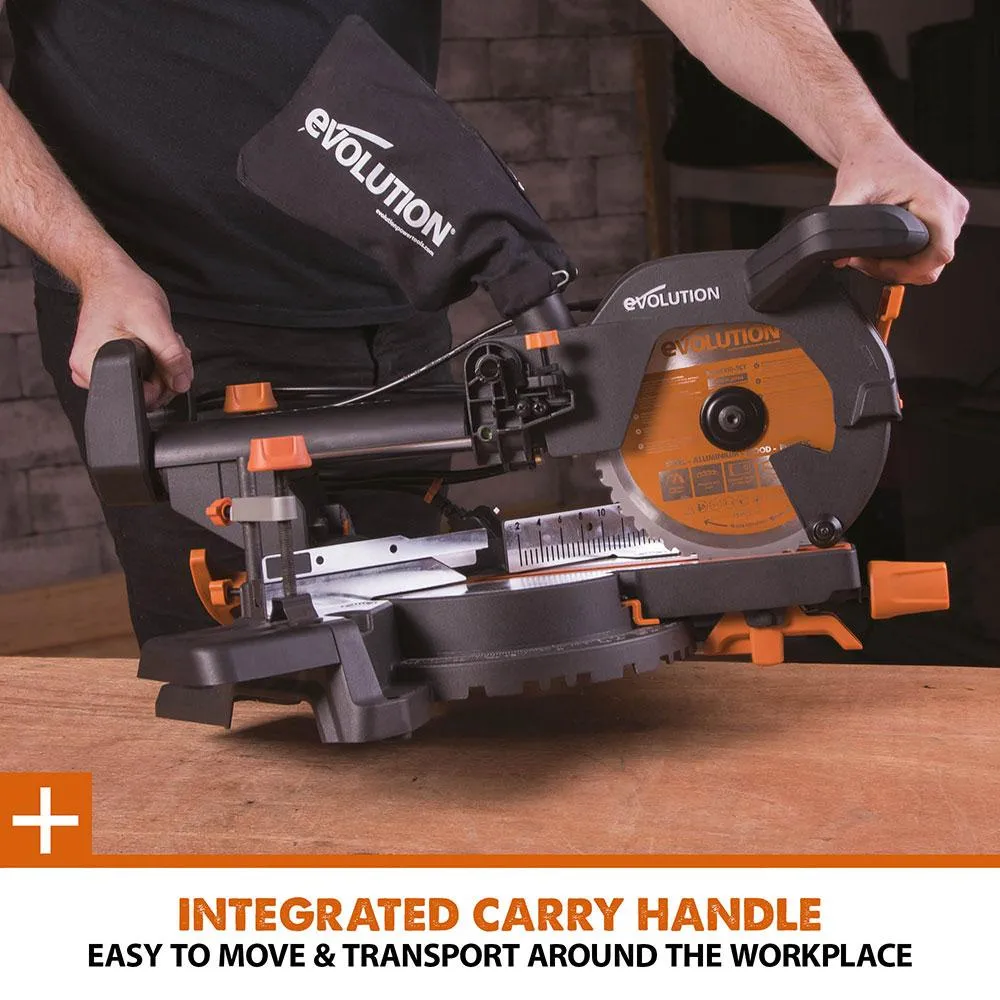

- Integrated carry handles - easy to carry & transport around the workplace.

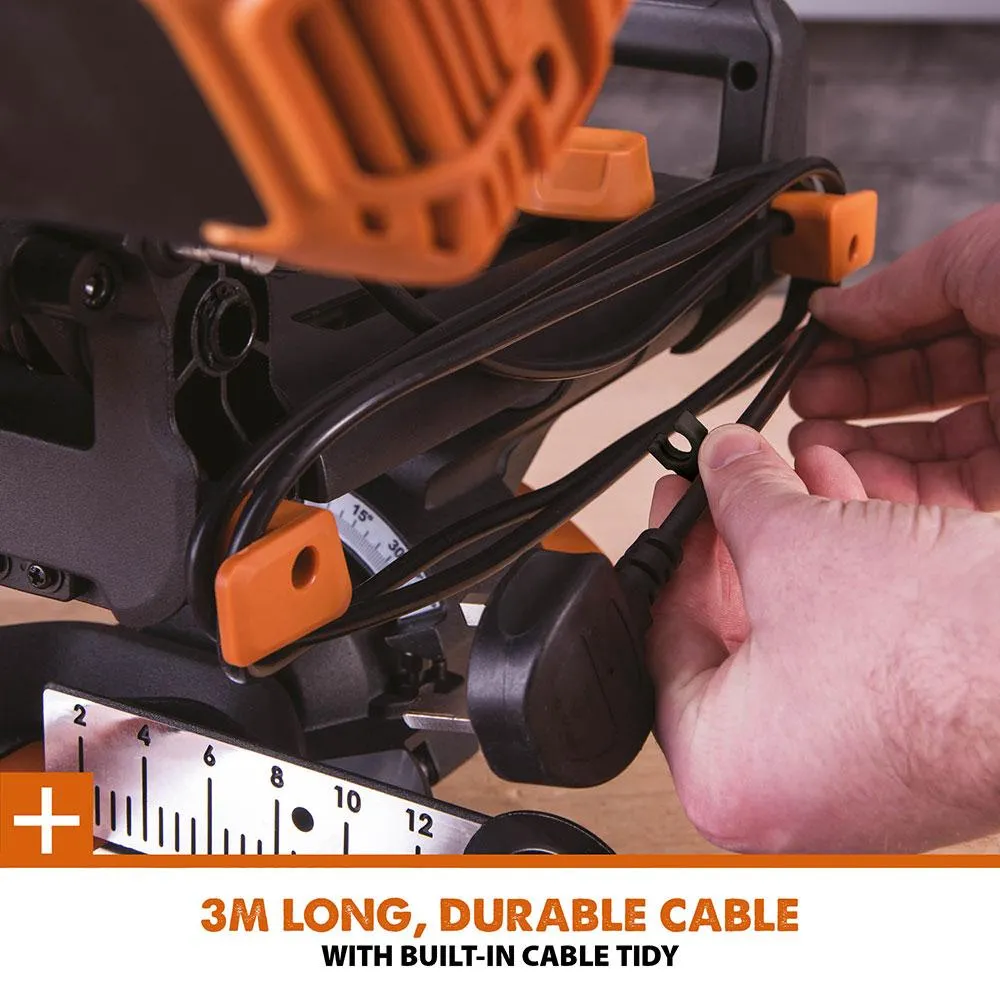

- 3m power cable reduces the need for extension leads.
Mitre Saw Stand Features
- Quick & easy set-up.
- Easy to transport and store away.
- Fits most brands of mitre saws.
- Height adjustable rollers with built-in end stop. Perfect for repeat cutting.
- Quick-release brackets for fast saw fitting and removal.
- Support up to 3m long work-pieces and up to 150kg of weight.
- 3 Year limited warranty.
Specifications
Mitre Saw
| Motor (110V 50Hz): | 1500W |
| Motor (240V 50Hz): | 1500W |
| Speed No Load: | 3750 min-1 |
| Max. Mitre: | 50° - 50° |
| Max. Bevel (Left): | 45° |
| Blade Guard: | Cast Aluminium |
| Cable Length: | 3m |
| Blade Dia.: | 210mm |
| No. of Teeth: | 24 |
| Bore: | 25.4mm |
| Kerf: | 1.7mm |

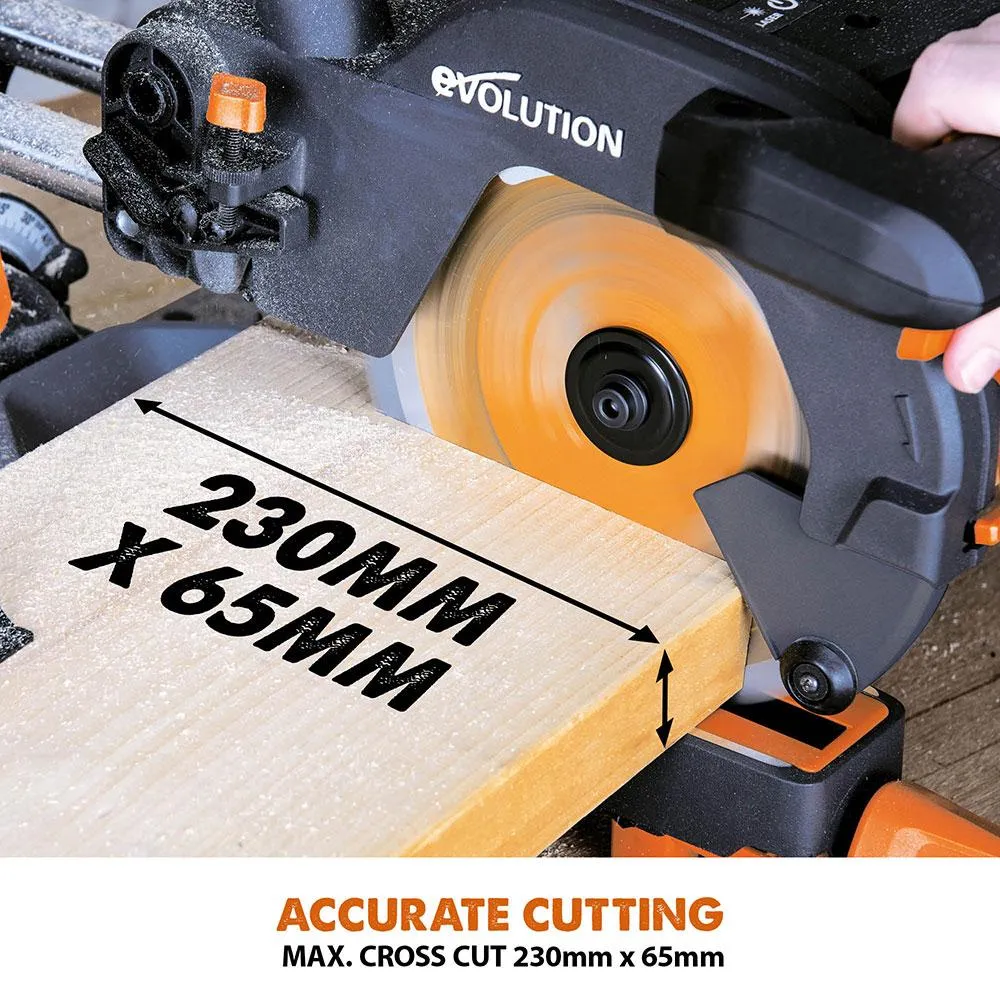

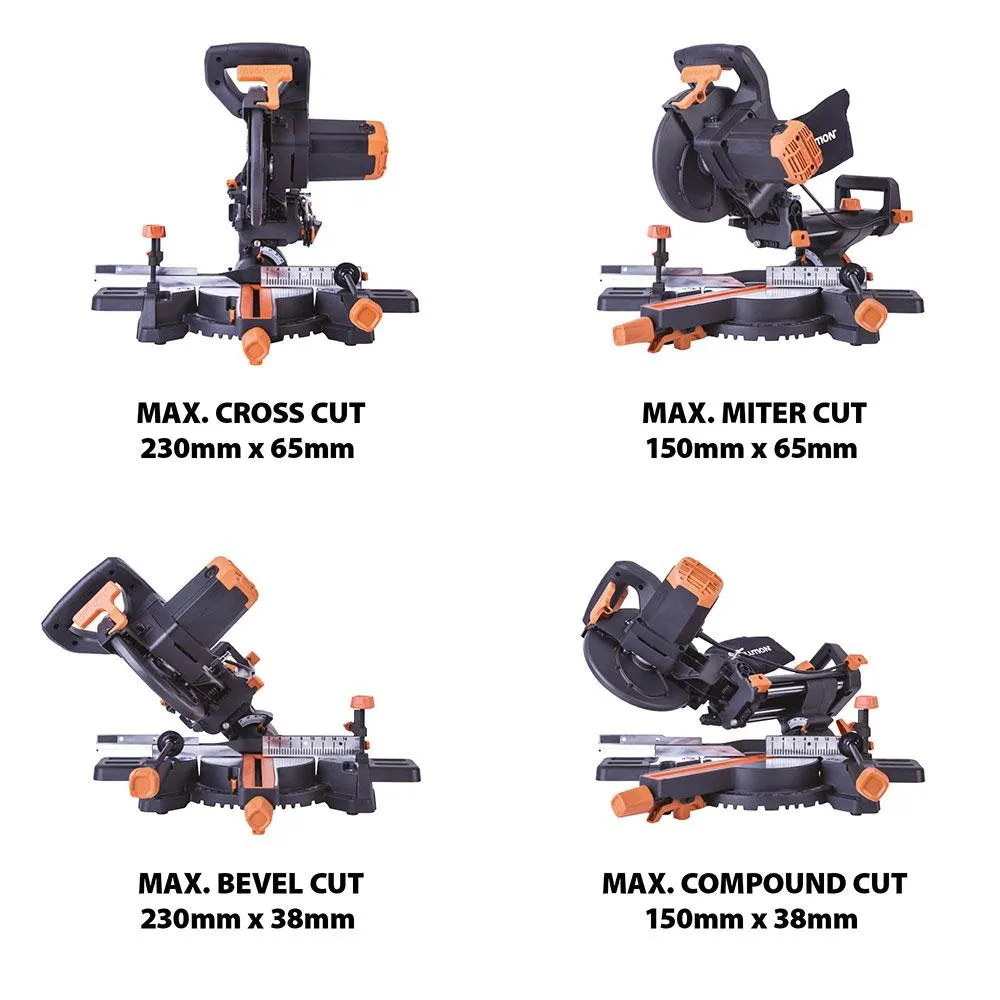

| Max. Cross Cut (0° x 0°): | 230mm x 65mm |
| Max. Bevel Cut (0° x 45°): | 230mm x 38mm |
| Max. Mitre Cut (45° x 0°): | 150mm x 65mm |
| Max. Compound Cut (45° x 45°): | 150mm x 38mm |
| Mild Steel Plate (Max. Thickness): |
6mm |
| Mild Steel Box Section (Max. Wall Thickness): |
3mm |
| Product Dimensions: | 314mm x 575mm x 610mm (with saw head down) |
| Packaging Dimensions: | 475mm x 315mm x 435mm |
| Product Weight: | 11.2 kg |
| Packaged Weight: | 13.8 kg |
| Sound Pressure Level LPA: | 110V: 95.7 dB(A) / 220-240V: 96.5dB(A) |
| Sound Power Level LWA: | 110V: 108.7 dB(A) / 220-240V: 109.5dB(A) |
| Uncertainty K: |
KpA & KWA: K=3 dB(A) |
| Laser Class: | Class 2 |
| Laser Source: | Laser Diode |
| Laser Output Power (Max): | <1mW |
| Wave Length (Nm): | 650 |
Mitre Saw Stand
| Max. Length Material Support: | 3m |
| Max. Load: | 150kg |
| Max. Saw Mounting Hole Spacing: | 680mm x 330mm |
Dimensions & Weight
Items Supplied
| Collapsed Product Dimensions: | 1000mm x 280mm x 230mm |
| Assembled Product Dimensions: | 1100mm x 600mm x 750mm |
| Arms Fully Extended Product Dimensions: | 1970mm x 600mm x 750mm |
| Packaging Dimensions: | 945mm x 265mm x 300mm |
| Product Weight: | 15.5kg |
| Packaged Weight: | 17.65kg |
| 24T Multi-Material TCT Blade |
| 3pc Hold Down Clamp |
| Machine Table Extensions |
| Dust Collection Bag |
| Dust Port Adaptor |

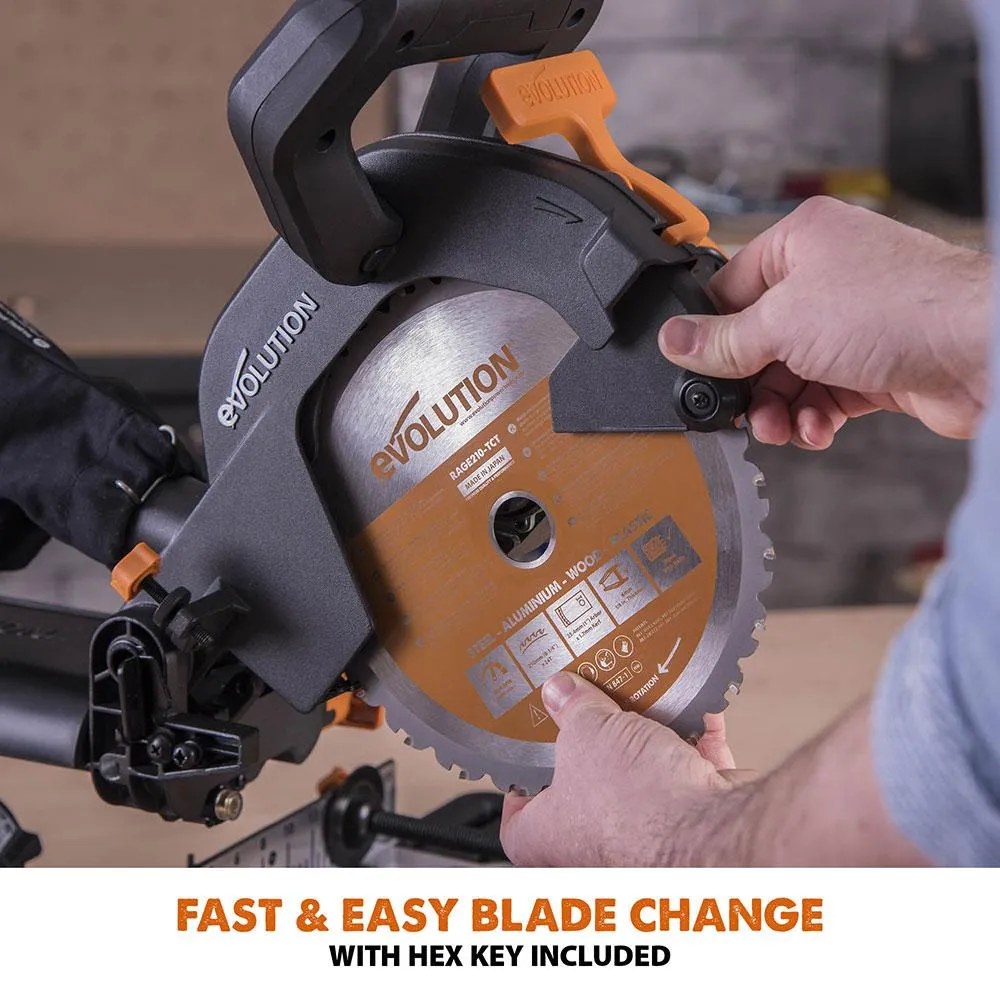

| Double Ended Hex Key (M6 & M4) |
| Laser Lens Cap |
| Sliding Rail Protector |
| Front Clamp |
| Rear Carry Handle |
| 3m Cable |
Mitre Saw Compatible With

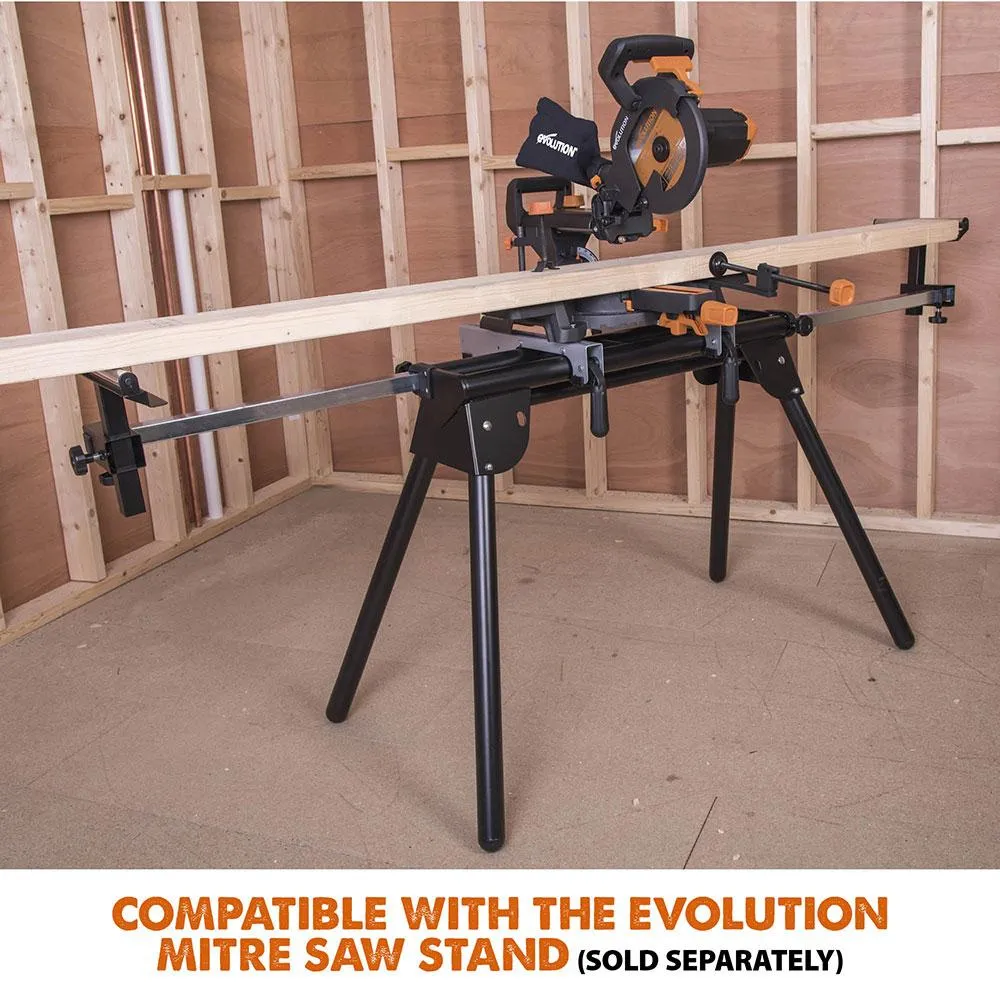

This versatile and portable Mitre Saw Stand is perfect for home, workshop and on-site use. Weighing only 15.5kg it's light enough to be carried with one hand and, thanks to its folding legs and telescopic arms, folds down to 1000mm x 280mm x 230mm.
Despite being light and compact, the stand can safely support up to 150kg, and long work-pieces up to 3m in length on its extendable arms. The quick release mounting brackets allow the mounting of any saw with mounting holes up to 680mm x 370mm apart.
