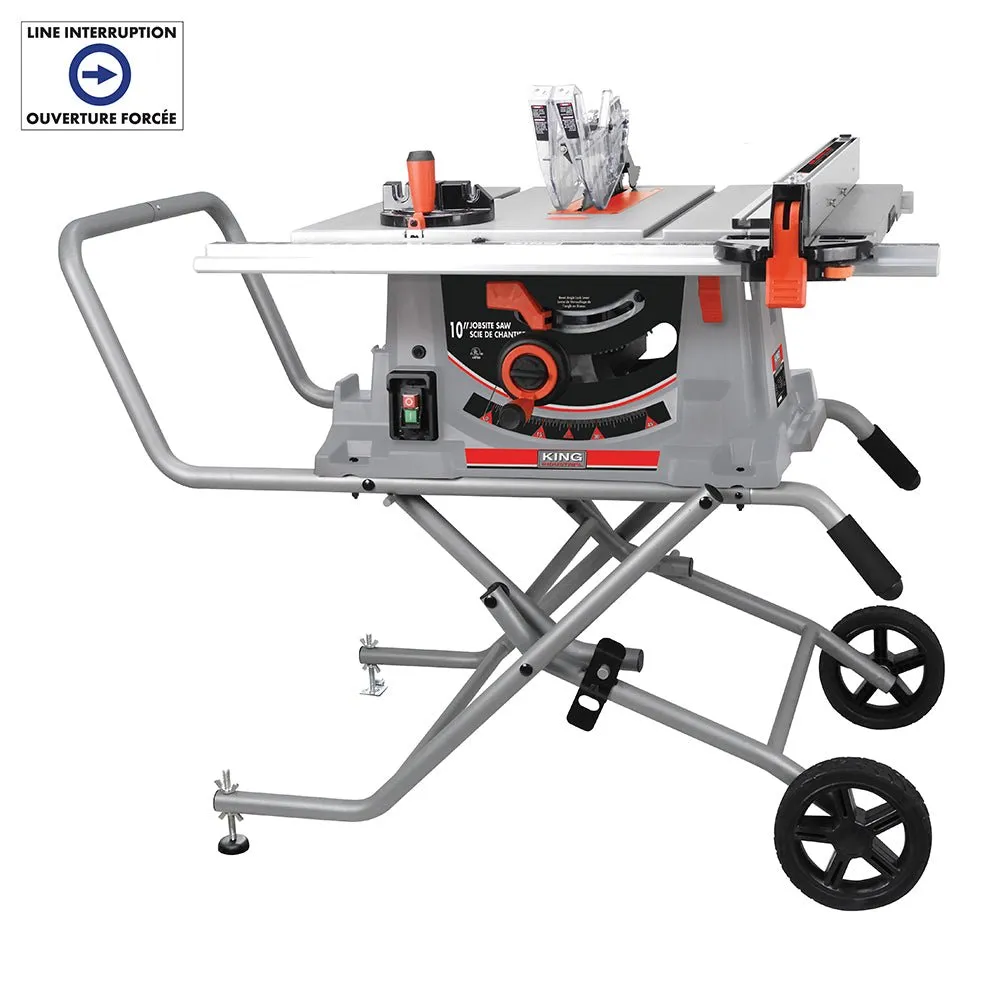

10" JOBSITE SAW WITH FOLDING STAND
- Powerful 15 Amp. heavy-duty motor with reset
- Large 22-1/4" x 28-3/4" cast aluminum table with extendable rails and table allowing up to 25" rip capacity to the right of the blade
- Electromechanical safety switch with line voltage interruption
- Folding stand with large 8" wheels for portability
- Low profile fence extension for cutting thin and narrow stock
- All in one height/bevel adjusting handwheel with blade height lock and micro bevel angle adjustment
- On-board storage secures rip fence, miter gauge, blade guard, anti-kickback fingers, extra blades, push stick and blade wrenches during transport
- Blade tilts 0° to 45° with detents for versatile angle cutting
- Table has writable surface insert to mark sides of blade for cut alignment
- 2-1/2" dust port for connection to standard shop vacuum
- Comes with 10" x 40 tooth general purpose blade, rip fence, miter gauge, Standard and Dado table inserts, push stick and wrenches
- Double insulated
-
MODE LKC-5100NS -
BLADE DIAMETER 10" -
DEPTH OF CUT AT 45°2-1/2" -
DEPTH OF CUT AT 90°3-1/2" -
TABLE SIZE 28-3/4" x 39-1/2" x 22-1/4" -
DIAMETER OF ARBOR 5/8" -
ARBOR SPEED 4,400 RPM -
MOTOR 15 Amp. -
VOLTAGE 120V, 1 phase, 60Hz -
ASSEMBLED DIMENSIONS(LXWXH) / WEIGHT57-3/4" x 29-1/2" x 41-3/4" / 70 lbs -
PACKAGING DIMENSIONS (LXWXH) / WEIGHT39-3/4" x 31-1/8" x 17" / 75 lbs
